1.25G 20km BiDi SFP LC
- Brand: bcp
- Product Code: BCP-SFP-B1xxx-0200-LC
- Availability: 8-10 Days
-
10.00€

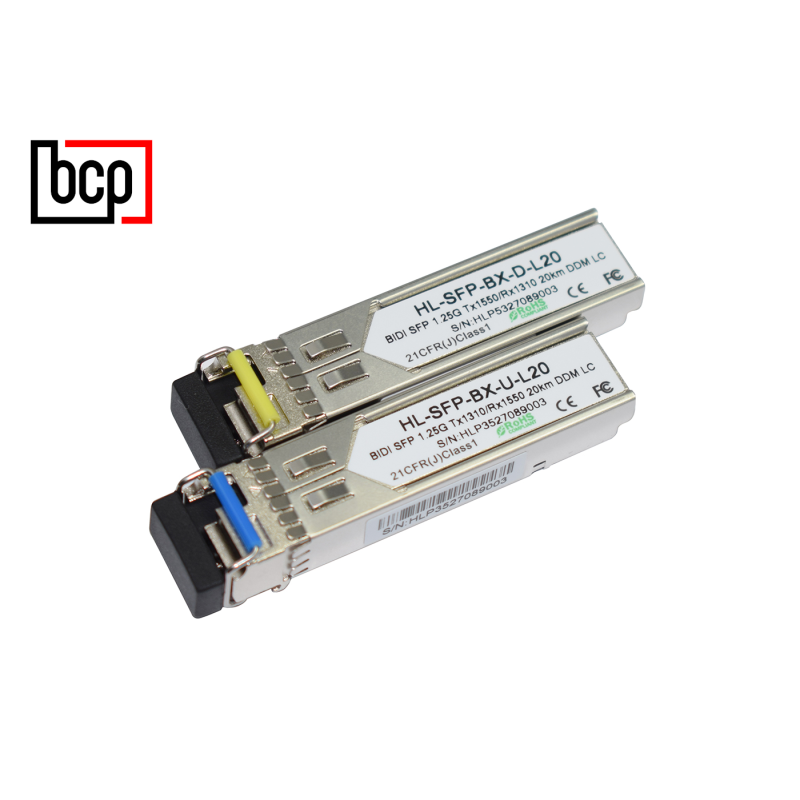

bcp 1.25G 1310nm/1490nm BiDi SFP for link length 20km with LC connector.
| Transceiver | |
| Form Factor | SFP |
| Wavelength | 1310nm-TX/1490nm-RX | 1490nm-TX/1310nm-RX | 1310nm-TX/1550nm-RX | 1550nm-TX/1310nm-RX |
| Connector | Simplex LC |
| Transmitter Type | FP |
| Transmitter output power | -9.0~-3.0dBm |
| Typical Power Consumption | <600mW |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Industrial Temperature Range | -40 to 85°C (-40 to 185°F) |
| Vendor Name | bcp |
| Max Data Rate | 1.25Gbps |
| Max Cable Distance | 20km |
| Media | SMF |
| Receiver Type | PIN |
| Receiver Sensitivity | < -25dBm |
| Extinction Ratio | 9dBm |
