1.25G 120km CWDM ZX120 SFP
- Brand: bcp
- Product Code: BCP-SFP-C1xxx-1200-LC
- Availability: 8-10 Days
-
65.00€

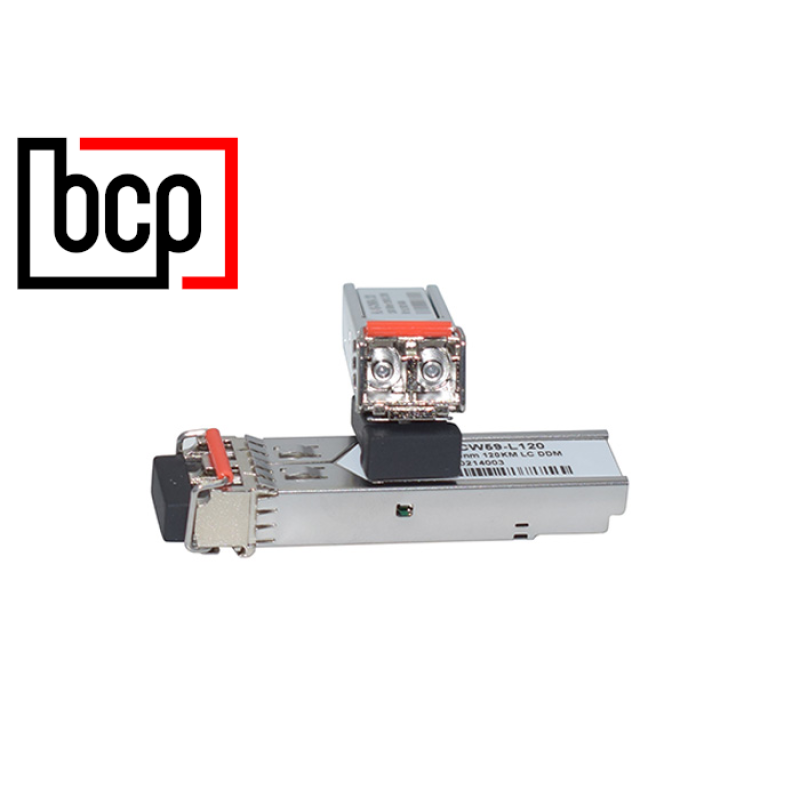

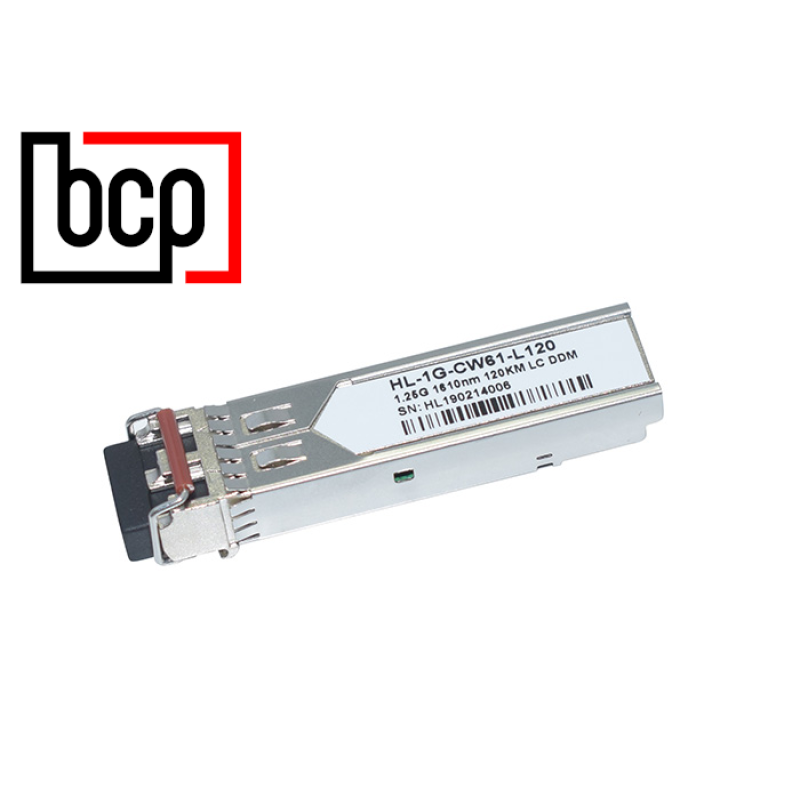

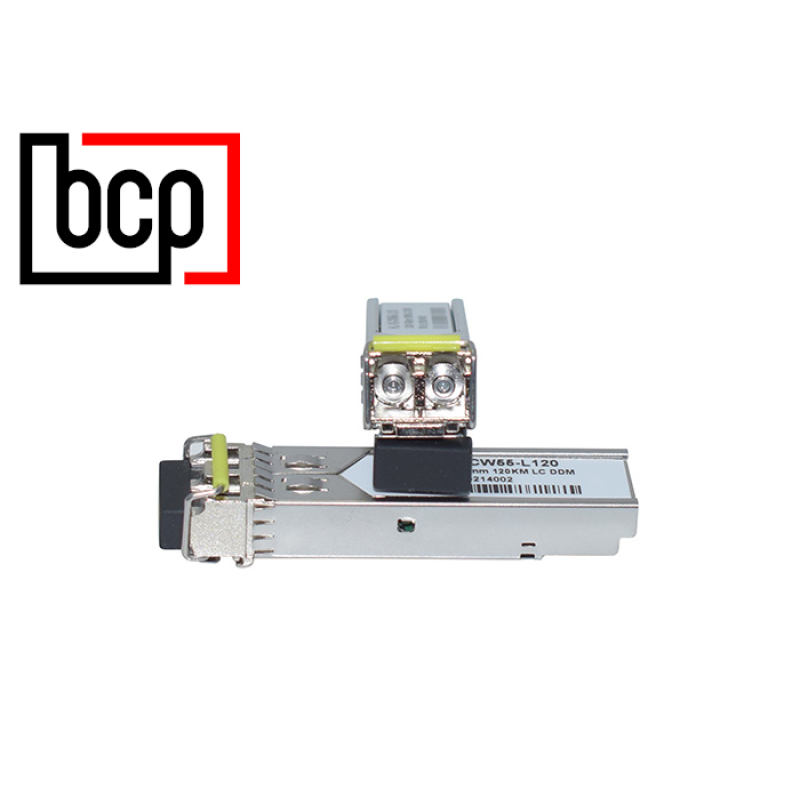

bcp 1.25G 1470nm-1610nm CWDM ZX SFP transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 120km.
| Transceiver | |
| Form Factor | SFP |
| Wavelength | 1470nm-1610nm |
| Connector | Duplex LC |
| Transmitter Type | DFB |
| Transmitter output power | -0.0~+5.0dBm |
| Typical Power Consumption | <700mW |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Industrial Temperature Range | -40 to 85°C (-40 to 185°F) |
| Vendor Name | bcp |
| Max Data Rate | 1.25Gbps |
| Max Cable Distance | 120km |
| Media | SMF |
| Receiver Type | APD |
| Receiver Sensitivity | < -32dBm |
| Extinction Ratio | 9dbM |
Tags: bcp, transceiver, optical transceiver, compatible, cisco, juniper, huawei, mikrotik, artista, 1.25g, sfp, 1470nm, 1490nm, 1510nm, 1530nm, 1550nm, 1570nm, 1590nm, 1610nm, lc, smf, single mode fiber cwdm,
